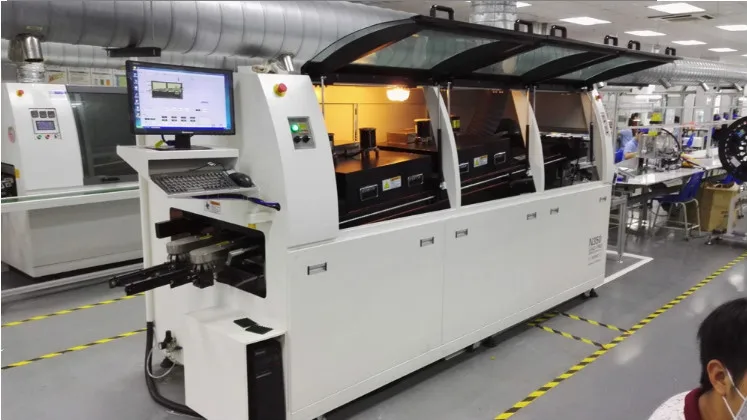

Economical SMT Lead Free Wave Soldering Machine For DIP Production Line
Parameter
Introduction
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.
4. Preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with tin resistant
6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.
8. PID close loop controlled hot air pre-heaters
9. Timer startup feature for solder pot, solder melted in within 90 minutes.
10. With black box memory function, the machine can always store the SPC data, improve work efficiency.
11. Automatic finger cleaner equipped.
12. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
