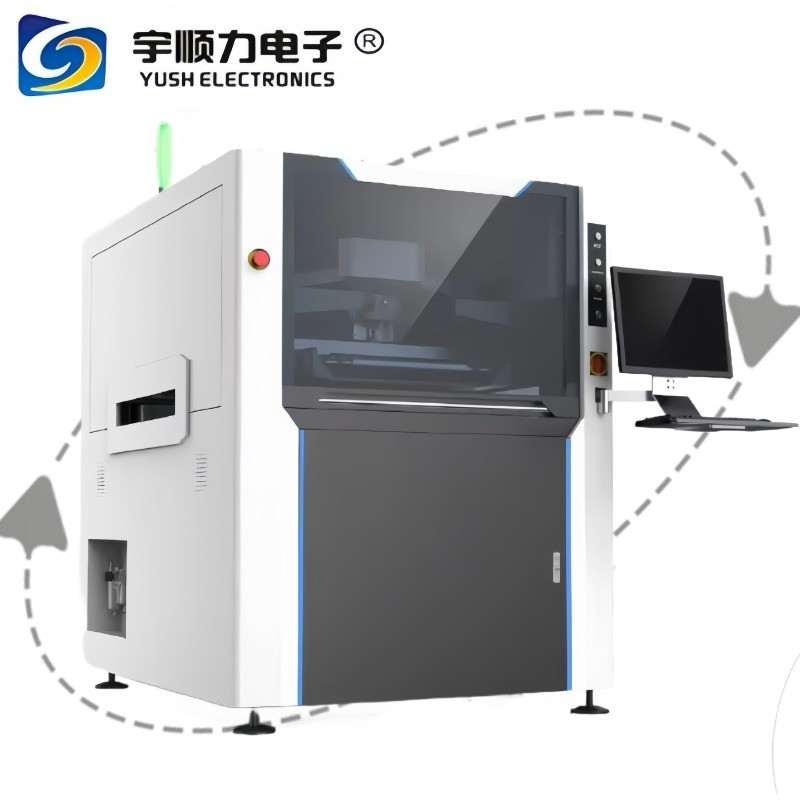

SMT Automatic PCB Solder Paste Printing Machine YSL-4034
- Introduction of SMT Printer
1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing,Automatic control improves production efficiency, quality control and saves production cost.
3. Automatic PCB calibration,Squeegee pressure adjustable,Automatic printing,Automatic stencil cleaning.
4. Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.
5. Multi-functional PCB positioning system for convenient and accurate PCB positioning.
6. Programmable PCB lifting platform ensure the PCB to lift to a proper height.
- Specification of SMT Stencil Printer
Model
| YSL-4034 | YSL-5151 | YSL-6561 | YSL-1500(LED) |
Frame Size(mm)
| 470*370 ~ 737*737
| 470*370 ~ 737*737
| 470*370 ~ 850*850
| 470*370 ~ 1800*750
|
PCB Size(mm)
| 50*50 ~ 400*340
| 50*50 ~ 510*510
| 80*50 ~ 650*610
| 80*50 ~ 1500*350
|
TransportDirection
| Left-Right; Right-Left; Left-Left; Right-Right
|
Support System
| Magnetic Pin/Up-down table adjusted/support block
|
Clamping System
| Side clamping, vacuum nozzle,Automation retractable Z pressure
|
Printer Head
| Two independent motorised printhead
|
Squeegee Type
| Stainless steel(standard),plastic
|
Cleaning System
| Dry, Wet, Vacuum
|
Inspection
| 2D Inspection(Standard)
|
Power Supply
| AC:220±10%,50/60HZ,3Kw
|
Control Method
| PC Control
|
Dimension(mm)
| 1220*1355*1500
| 1220*1530*1500
| 1330*1530*1500
| 2500*1220*1500
|
Weight
| Approx:1250kg
| Approx:1300kg
| Approx:1300kg
| Approx:1800kg |
Model
| YSL-5134 | YSL-6534 | YSL-1200(LED) |
Frame Size(mm)
| 470*370 ~ 737*737
| 470*370 ~ 737*737
| 470*370 ~ 850*850
|
PCB Size(mm)
| 50*50 ~ 400*340
| 50*50 ~ 510*510
| 80*50 ~ 650*610
|
Dimension(mm)
| 1220*1355*1500
| 1330*1530*1500
| 2200*1200*1500
|
Weight
| Approx:1250kg
| Approx:1300kg
| Approx:1500kg
|
Keywords
SMT Stencil Printer, SMT Solder Paste Printer, SMT Printing Machine, SMT PCB Printer, 600mm Solder Paste Printer, , Solder Paste Printer, 1200mm Solder Paste Printer, Semi-auto Solder Paste Printer, SMT Automatic Stencil Printer, PCB Printing Machine
