                                    semi-automatic solder paste printer, high precision printing machine YSL-1200, semi solder paste printer with warranty

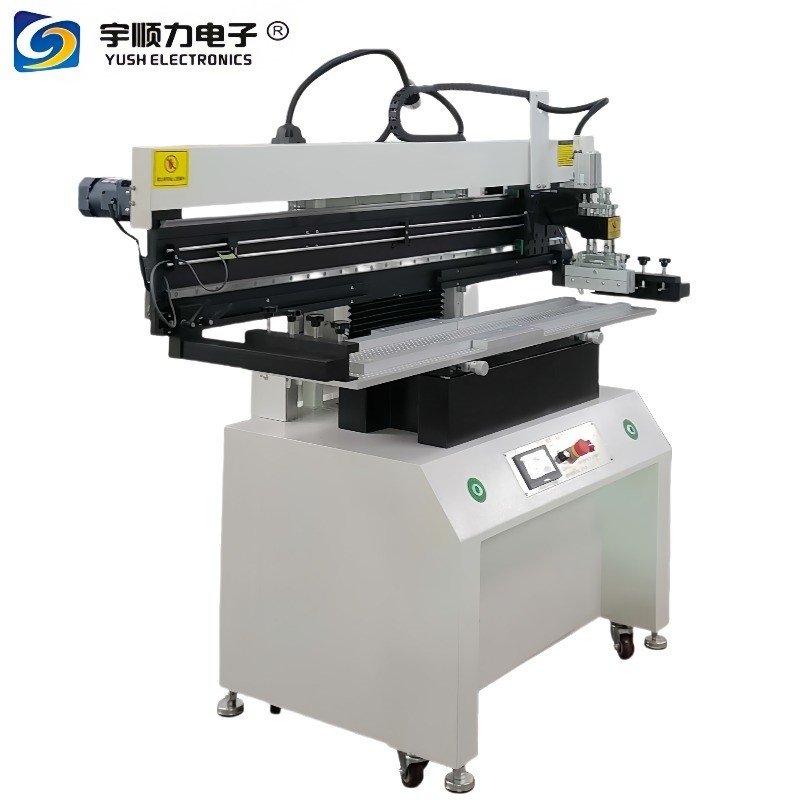

High precision semi-automatic printing machine YSL-1200

High precision semi-automatic printing machine YSL-1200 0

Microcomputer control, touch screen display, menu operation interface;
Scrapper floating.(Similar to MPM automatic printing press, the scraper can float up and down and automatically adjust the level of steel mesh);
The scraper pressure is adjustable (the pressure of the scraper on the steel mesh can be adjusted according to the length of different types of scraper);
Equipped with a frequency converter speed regulation system, the scraper running speed is stable;
The work operation adopts the two-hand button switch operation, which is safe and reliable;
The touch screen menu can independently set the overall pause time of the steel net;
The positioning fixed mode of PCB plate has reference hole positioning, reference side positioning and reference hole reference side positioning, template positioning and other different precise positioning forms;
The touch screen is equipped with time display function, printing times automatic counting function, screen protection function;
Equipped with the scraper speed adjustable function and the emergency stop safety function;
Printing mode: single, double and second start (menu setting is optional);
Printing working status: automatic / semi-automatic / click three printing status (menu setting is optional);

LED Line Total Solution

High precision semi-automatic printing machine YSL-1200 1

Semi auto printer

High precision semi-automatic printing machine YSL-1200 2

Conveyor

High precision semi-automatic printing machine YSL-1200 3

Pick and place machine

High precision semi-automatic printing machine YSL-1200 4

Conveyor

High precision semi-automatic printing machine YSL-1200 5

Lead free reflow oven

High precision semi-automatic printing machine YSL-1200 6

Printing machine technical configuration
Equipment name	High precision semi-automatic printing machine			Model: YSL-1200

project	serial number	name		Tender detailed technical parameters(Functional features)	explain
Basic parameters
	1		moving direction	Side-to-side mobility
	2		Working table	1200mm×500mm
	3		power source	Single-phase (220V)
	4		Boundary dimension	Boundary dimension
	5		Air source	0.5mpa-0.8mpa
	6		Initial power	0.2KW
	7		Weight	350KG
	8		date of delivery	10-12 working days
	9		Transportation and lifting	Specialized transport unit
travel mechanism
	1		head feed motor	Three-phase motor 60W
	2		movement speed	0-2200mm/mins
	3		guide rail	Taiwan silver linear guide
control segment
	1		· PLC	Siemens (for printing presses)
	2		· touch screen	4.3# Display control screen
	3		master cylinder piston	SC80*150
	4		Tool head cylinder	CDU25-50
	5		transducer	ENC
