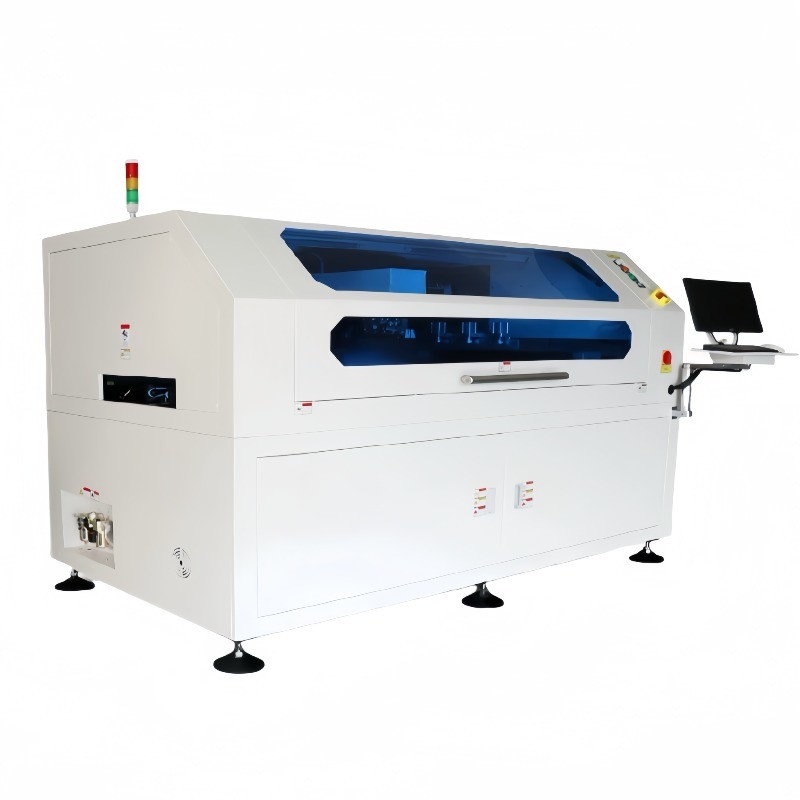

Fully Automatic SMT Stencil Printer for LED PCB Assembly

LED SMT Stencil Printing Machine Fully Automatic Solder Paste Screen Printer

Introduction of SMT Printer

YUSH Full-Auto SMT Stencil Printer is a high precision automatic solder paste printer designed for Industry 4.0 and MES system integration, achieving zero defects through advanced automation.

High positional accuracy with repeated positioning accuracy of ±0.01mm and printing accuracy of 0.025mm
Supports glue printing with automatic control for improved production efficiency and quality
Automatic PCB calibration with adjustable squeegee pressure and automatic printing
Programmable motor controls for precise separation speed and distance adjustment
Multi-functional PCB positioning system for accurate placement
Programmable PCB lifting platform for optimal height adjustment
Features independently developed suspended print head with automatic pressure adjustment

Specification of SMT Stencil Printer

Model	YSL-4034	YSL-5151	YSL-6561	YSL-1500(LED)
Frame Size (mm)	470370 ~ 737737	470370 ~ 737737	470370 ~ 850850	470370 ~ 1800750
PCB Size (mm)	5050 ~ 400340	5050 ~ 510510	8050 ~ 650610	8050 ~ 1500350
Transport Direction	Left-Right; Right-Left; Left-Left; Right-Right
Support System	Magnetic Pin/Up-down table adjusted/support block
Clamping System	Side clamping, vacuum nozzle, Automation retractable Z pressure
Printer Head	Two independent motorised printhead
Squeegee Type	Stainless steel (standard), plastic
Cleaning System	Dry, Wet, Vacuum
Inspection	2D Inspection (Standard)
Power Supply	AC:220±10%, 50/60HZ, 3Kw
Control Method	PC Control
Dimension (mm)	122013551500	122015301500	133015301500	250012201500
Weight	Approx: 1250kg	Approx: 1300kg	Approx: 1300kg	Approx: 1800kg

Complete SMT Factory Solutions

Full SMT solution provider with core technology
Professional technical service and support
Extensive experience in SMT factory setup
Comprehensive solutions for all SMT-related challenges

Keywords: SMT Stencil Printer, SMT Solder Paste Printer, SMT Printing Machine, SMT PCB Printer, 600mm Solder Paste Printer, 1200mm Solder Paste Printer, Semi-auto Solder Paste Printer, SMT Automatic Stencil Printer, PCB Printing Machine, SMT Production Line, SMT Assembly Line.

YUSH Electronic Technology Co., Ltd, founded in 2004 and located in Jiangsu, China, specializes in professional PCB separation equipment with advanced production facilities and experienced technical team.
