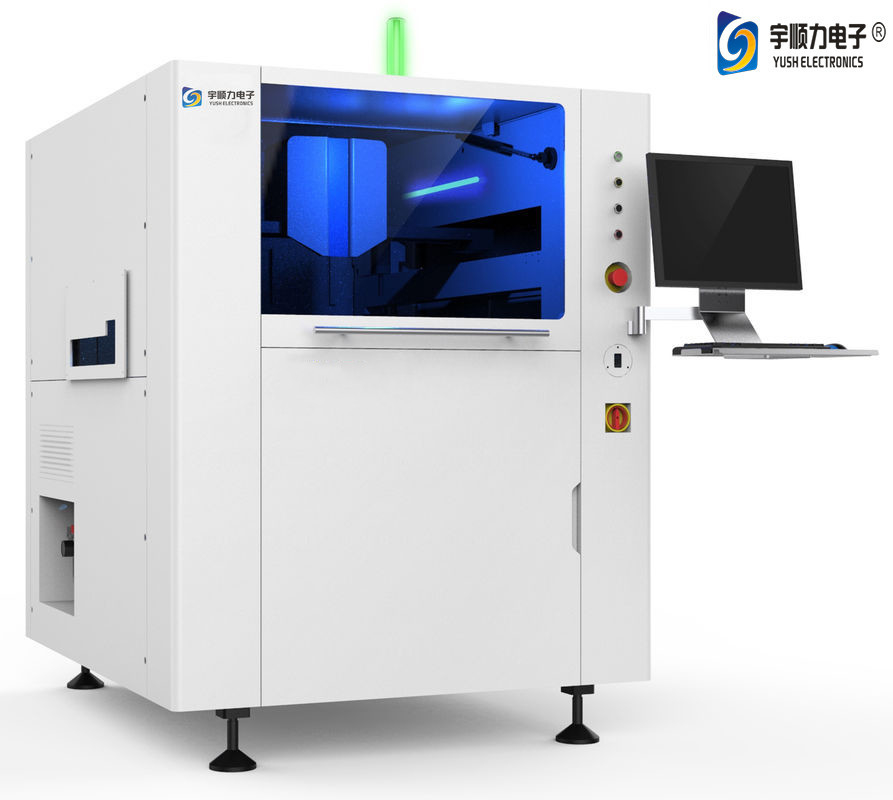

Automatic Vision Screen Soldering Paste Printer FP450+
Automatic Vision Screen Soldering Paste Printer FP450+

Automatic Vision Screen Soldering Paste Printer FP450+

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description
Highlight:

automatic solder paste printer FP450+

,

vision screen solder paste printer

,

auto solder paste printer with warranty

Automatic Vision Screen Soldering Paste Printer FP450+

Digital Solder Paste Printer - GSE Automatic Vision Screen Soldering Paste Printer ( Model:FP450+ )

Fully automatic Solder Paste Printer Machine/ Stencil printer/ Screen printer for SMT production line

Function overview

1.PCB thickness adaptive system

Automatic Vision Screen Soldering Paste Printer FP450+ 0

2.High efficiency cleaning system

3.Z-axis servo connecting

4.Intelligent scraper system

Specification parameters

PCB parameters

Max board size

450mm x 350mm

Min board size

50mm x 50mm

PCB thickness

0.4mm~6mm

Warpage

Max. PCB diagonal 1%

Max board weight

6Kg

Board edge spacing

configuration to 3mm

Max bottom spacing

20mm

Transmission speed

1500mm/s(Max)

Transmission height to the land

900±40mm

Transmission direction

Left-Right, Right-Left, Left-Left, Right-Right

Transmission method

One-stage transmission rail

PCB pick-up method

Software can change the elastic lateral pressure(Optional: multipoint on the bottom or partial vacuum or whole vacuum).

Board supporting method

Magnetic thimble, contour blocks, special workpiece fixture
Printing parameters

Printing head

Two independent straight league motor drives

Template frame size

370mm x 470mm(470 left/right placed)~737 mm x 737 mm

Max printing area

450mm x 350mm

Scraper type

Stencil scraper/rubber scraper(angle 45°/55°/60° select according to the printing technology)

Printing mode

Single or two scrapers printing

Demoulding length

0.02 mm to 12 mm

Printing speed

6 mm/s to 200 mm/s

Printing pressure

0.5kg to 10Kg

Printing movement

±250 mm (from the center)
Image parameters

Field of view(FOV)

6.4mm x 4.8mm

Table adjustable area

X,Y:±7.0mm θ:±2.0°

Reference point type

Standard reference point(see SMEMA standard),bonding pad/hole

Camera system

Individual camera, Up/down individual imaging visual system, geometric matching positioning
Performance parameters

Imaging alignment repeated accuracy

±12.5μ(±0.0005") @6 σ,Cpk≥2.0

Printing repeated accuracy

±25μ(±0.001") @6 σ,Cpk ≥ 2.0
Cycle time 7.5s Less than 7.5s
Replace line time 5mins Less than 5mins
Equipment
Power AC220V±10%,50/60HZ,15A
Compressed air 4~6Kg/cm2, 10.0 tube
Operation system Windows XP

Equipment size

1140mm(L) x 1400mm(W) x 1480mm(H)( Do not include the screen and tri-color light height)

Equipment weight

About 1000kg

Tags:

pcb stencil printer,

solder paste stencil printer,

solder paste stencil machine

Similar Products
High Precision Fully Automatic Visual Printer For Mini Led

High Precision Fully Automatic Visual Printer For Mini Led

Get Best Price
High Quality Fully Automatic Visual Printer For SMT Production Line

High Quality Fully Automatic Visual Printer For SMT Production Line

Get Best Price
Fully Automatic High Efficiency Visual Printer For SMT Line

Fully Automatic High Efficiency Visual Printer For SMT Line

Get Best Price
Fully Automatic Solder Paste Printer 1150mm x 1380mm for SMT

Fully Automatic Solder Paste Printer 1150mm x 1380mm for SMT

Get Best Price
Semi-Automatic SMT Stencil Printer Semi Automatic Stencil Printing Machine for SMT Production

Semi-Automatic SMT Stencil Printer Semi Automatic Stencil Printing Machine for SMT Production

Get Best Price
Fully Automatic High Quality High-Precision PCB Soldering Paste Printer SMT Printer

Fully Automatic High Quality High-Precision PCB Soldering Paste Printer SMT Printer

Get Best Price
High Quality High-Precision Fully Automatic PCB Soldering Paste Printer

High Quality High-Precision Fully Automatic PCB Soldering Paste Printer

Get Best Price
High Quality Fully Automatic Vision Screen Soldering Paste Printer For SMT Production Line

High Quality Fully Automatic Vision Screen Soldering Paste Printer For SMT Production Line

Get Best Price
High Quality Fully Automatic Solder Paste Printer For SMT Production Line

High Quality Fully Automatic Solder Paste Printer For SMT Production Line

Get Best Price
Semi-Automatic Manual Solder Paste Printing Machine Semi Automatic Solder Paste Printing Machine for SMT PCB Assembly

Semi-Automatic Manual Solder Paste Printing Machine Semi Automatic Solder Paste Printing Machine for SMT PCB Assembly

Get Best Price
YS-PP20 the Large Platform High Speed High Precision SMT Screen Printer For SMT Production Line

YS-PP20 the Large Platform High Speed High Precision SMT Screen Printer For SMT Production Line

Get Best Price
YUSH Electronic Technology Co.,Ltd
Products

SMT Production Line

PCB Depaneling Machine

PCB Depaneling Router Machine

PCB / FPC Punching Machine

SMT Pick And Place Machine

LED PCB Depaneling Machine

Dip Line Machine

sales@yushunli.com 86-134-16743702
5th Floor, No.10, Shanquan Road, Yongtou Village, Chang’an Town, Dongguan City, Guangdong province, China.
Quick links
company profile Factory Tour Quality Control News Cases Sitemap Privacy Policy
China Good Quality SMT Production Line Supplier. Copyright © 2025 YUSH Electronic Technology Co.,Ltd . All Rights Reserved.
