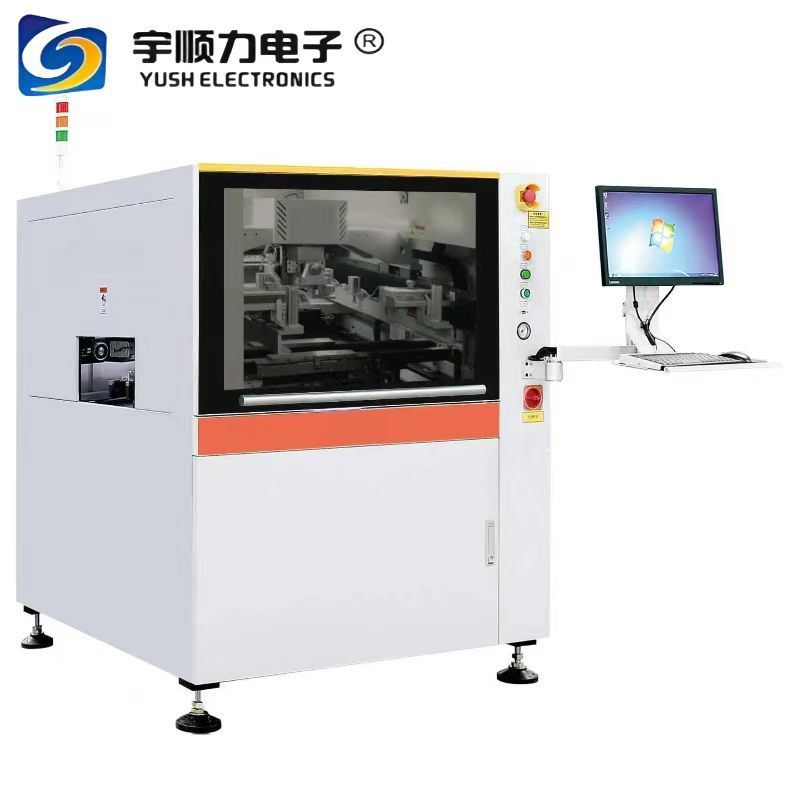

Name: High Quality Fully Automatic Visual Printer For SMT Production Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-9
Price: 28000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YUSH

Certification: CE

Model Number: YSL-9

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 28000

Packaging Details: WOODEN CASE

Delivery Time: 8

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 10

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                            fully automatic SMT printer, visual solder paste printer, SMT production line printer


Min Size:	420x370MM	Max Size:	737X737MM
Thickness:	20-40MM	Stencil Position Mode:	Automatic Y-axis Positioning
PCB Warpage:	<1%

Min Size:	420x370MM
Max Size:	737X737MM
Thickness:	20-40MM
Stencil Position Mode:	Automatic Y-axis Positioning
PCB Warpage:	<1%

High Quality Fully Automatic Visual Printer For SMT Production Line

Product Overview

Technical Specifications

Screen Frames

Parameter	Specification
Min Size	420x370MM
Max Size	737X737MM
Thickness	20-40MM
Stencil Position Mode	Automatic Y-axis positioning

PCB Board Parameters

Parameter	Specification
PCB Min Size	50x50mm
PCB Max Size	510x340mm
PCB Thickness	0.4-6mm
PCB Warpage	<1%
Image Capture Mechanical Range	530x340mm
PCB Board Edge Clearance	2.5mm
Board Height	25mm
Transport Height	900±40mm
Transport Speed	Max 1500mm/S Programmable
Transport Mode	One section transportation track
Maximum PCB Board Weight	5kg
Transport Direction	Left-Right; Right-Left; Left-Left; Right-Right

Printing Parameters

Parameter	Specification
Printing Speed	10-200mm/sec
Printing Pressure	0.5-25kg
Printing Mode	Single or double squeegee printing
Release Distance	0-20mm
Snap-Mode	Three stage demolding
Squeegee Angle	60°/55°/45°
Squeegee Type	Rubber squeegee/Steel squeegee (Angle 45°/55°/60°)
Release Speed	0-20mm/sec

Printing Accuracy

Parameter	Specification
Repeat Position Accuracy	±0.009mm@6o,CPK≥2.0
Printing Accuracy	±0.017mm@6 o,CPK≥2.0
Cycle Time (Excluding Cleaning)	<7s (Exclude Printing&Cleaning)
Cycle Time (Including Cleaning)	13s
Changeover Time	5Min

Cleaning Parameters

Parameter	Specification
Cleaning Stroke	Automatic generation
Cleaning Position	Post cleaning (BTB pre cleaning)
Cleaning Speed	10~200mm/sec
Cleaning Fluid Consumption	Auto&Manually adjustable
Cleaning Paper Consumption	Auto&Manually adjustable

Image Parameters

Parameter	Specification
CCD FOV	10*8mm
Camera Type	130 megapixel digital camera
Camera System	Lock up/down option structure
Camera Cycle Time	150ms
Mark size	0.1~6mm
Stay Away Number	Max:1pcs
Mark Number	Max:4pcs
2D Detection	Detect low tin/missing print/continuous tin

Functional Configuration

Safety Control: Door open to stop, abnormal alarm
Smart UI: Brand new interface, shortcut key operation
Permission Setting: Can be freely set, with authority division for operators, technicians and engineers
BTB: Electrical cleaning layout is advanced, equipment is integrated, saving space and improving efficiency
Standard MES System: Customized output of Industry 4.0 solutions, can record SOP and equipment open data, and upload
SPI Connection: Automatic compensation for offset and detection of less tin, Automatic cleaning of steel mesh
Traceability System: Camera scan code, size compatible: 2.5*2.5-8.*8mm
In Series: Two machines can be printed in tandem to increase productivity

Appearance Dimensions

Installation Requirements

Parameter	Specification
Machine Weight	1100kg
Main Power Supply	AC:220±10v;50/60Hz,3KW,with stable current and power supply
Ground Wire	The equipment needs to be grounded separately by pulling a grounding wire
Plug Type	English SS145(13A)
Main Air Supply Source	4.0-6qf/cm² industrial gas source, with a straight airway diameter of 8mm

Equipment Operating Environment

Parameter	Specification
Working Temperature	-20℃-45℃
Working Environment Humidity	30%~60%
Electrostatic Protection	ESD grounding electrostatic protection
