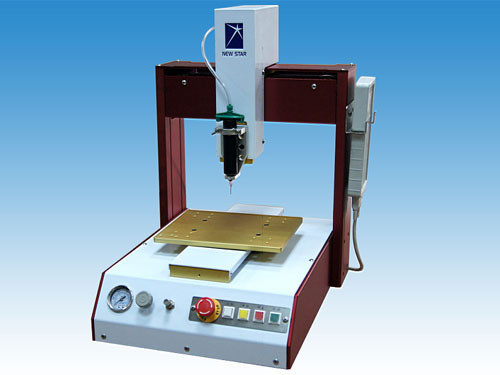

model YS-221A
Travel range 200/200/100
maximum load 5kg/2kg
max speed X:600/Y:600/Z:300
repeatability of positional ±0.02mm
control system 6-axis (Star-600A)
motor Japan Shinano stepper motor
Drive method Belt + THK precision linear guide
programm method Hand-held teach pendant
I/O port 8 Input/8 Output
Push the glue system Optional push plastic table reference system
dispensing valve Reference dispensing valve Matching Table
Automatic needle (optional) Optional
Built-dispensing controller (optional) Optional
External Control Interface RS232
Dispensing pressure controller input 0.4Mpa（min）
Input Voltage 220V
Dimensions (WxDxHmm) 400x480x520
Weight (approx.) 38kg
____________________________________________________________________________________________
◆ Features
6-axis motion control system, excellent functional expandability.
A simple programming environment, offset settings, Matrix call, repeat track function.
can be any three-dimensional trajectory.
ergonomic teach pendant hanging arm, easy to operate.
Modular design, easy maintenance, maintenance.
By choosing accessories or other devices, enhanced features simple.
Common UV glue, red glue, AB glue, EPOXY, COB vinyl, instant glue, solder paste, conductive adhesive, etc. can be used in the T-series desktop dispensing equipment.
◆ Applications
Semiconductor Packaging
Automotive and Parts
Microelectronics and Semiconductor
Optical Products
LED
Consumer Electronics
Avionics
Communications-Electronics
Motor Industry
