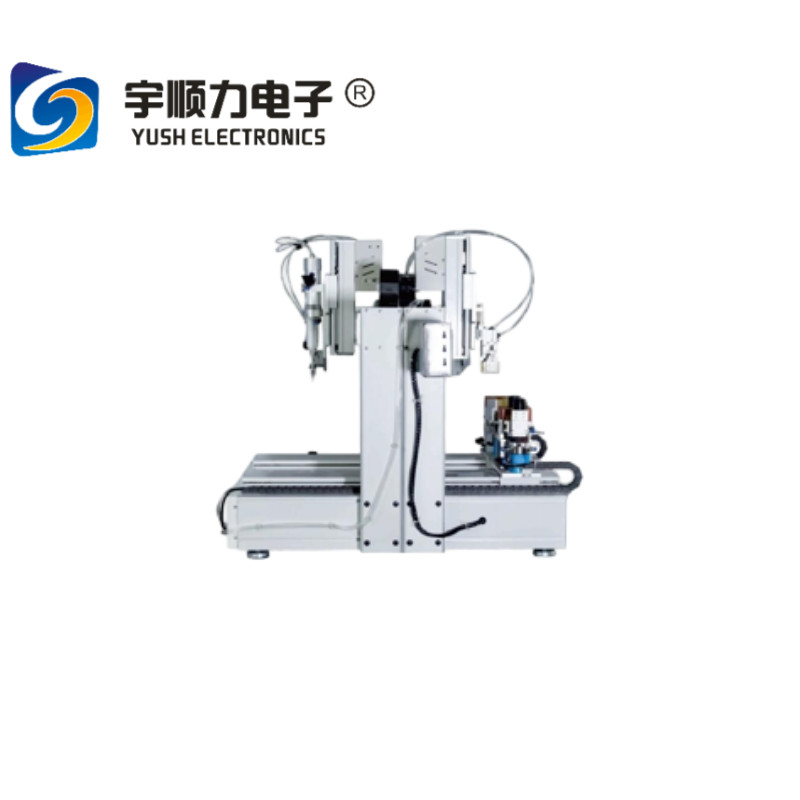

Name: Automatic Glue Dispensing Robot 0-600mm/sec 10kg Load
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-500L
Price: 4500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YUSH

Model Number: YS-500L

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD4500

Packaging Details: woodencase

Delivery Time: 30days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 100SETS

Get Best Price

Product Details

Product Description

Highlight:
                                    automatic glue dispensing robot 600mm/sec, glue dispensing robot 10kg load, high-speed glue dispensing robot


Automatic Glue Dispensing Robot 0-600mm/sec 10kg Load

Full Automatic/High Quality Back to back dispenser for SMT production line 0-600mm/sec

Specification Sheets

name

Back-to-back automatic feeding and dispensing machine

Trip(mm)

600/600/500/500/100/100(The itinerary can be customized.)

(travel customizable)

programmatically

Import teachingprogramming or graphics

Can movethegraphtrack

Point,line,arc,circle,curve,multipldines,spiral,ellipse

Dispensinghead

Precision dispensing valve

Glue barrel

Capacityoptional

Minimum discharge

0.01ml

The gluefrequency

5 times/SEC.

load

Y/Xaxle load

10kg

Z axle load

5kg

Axialdynamicspeed X/Y/Z(mm)

0-600mm/sec

Resolvingpower

0.01mm/Axis

Repeatability

positioning accuracy(mm)

Screw drive

0.01-0.02

Synchronousbeltdrive

0.02-0.04

Programrecord mode

Atleast 100,5000 pointseach

Displaymode

LCD Teaching box

Motorsystem

Japan precision micro stepping motor

Drivemode

Guide

Taiwan upper silver linear guide rail

Wirerod

Taiwan silver bar

belt

Italy Italy Lartey synchronous belt

XYZ axis synchronous belt for standard configuration,Zaxis screw rod is optional,XYZ axis screw rod for customization

Motion filling function

3 axis(3 Three dimensional space,any route can)

Input power

Full voltage AC110V-220V

Externalcontrol interface

RS232

Motorcontrol shaft number

3axis

Axis range(mm)

Xaxis

500

Xaxis

500

Yaxis

600

Yaxis

600

Zaxis

100

Zaxis

100

Bodyweight(KG)

85KG

Automatic Glue Dispensing Robot 0-600mm/sec 10kg Load 0

Distinguishing Feature

●Y-type needle control glue valve,can break glue simply,not drawing; Automatic dispensing,automatic feeding
●There is no phenomenon such as big head at both ends and uneven joint.
●It can be compatible with 10:1,1:1,2:1 AB glue mixing point glue.
●It has an arbitrary point,line,surface,arc and other irregular curves of continuous dispensing function.
●It has a variety of glue needle,pin,glue valve controller,can meet different requirements.
●Its own refrigeration function effectively delays the curing time of AB glue.
