Highlight:
                                    PCB depaneling machine with multiple blades, LED PCB depaneling machine YSVJ-650, YSVJ-650 PCB depaneling machine warranty

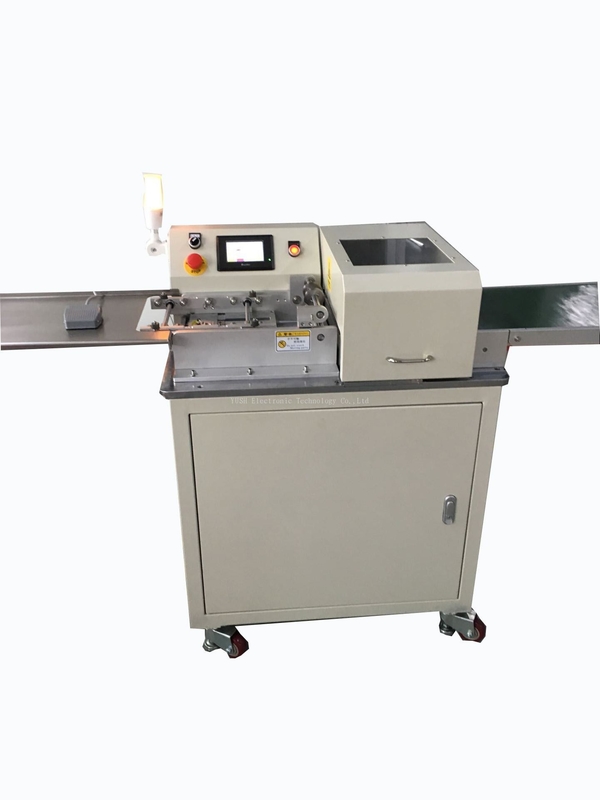

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine 0

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine:

1.The machine is equipped with standard upper and bottom 20 groups of blades which can separate the 10 lines or more LED light bars at same time.all blades are made of 2.endurable SKD11 high speed steel.

3.PCB clamping and conveying system ensure precise separating without deformation and burrs.

4.The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

5.Full english operation interface , easy to operate.

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine 3

Features:

● The conveying speed can be adjusted.

● The single separated PCB width is 8-20 mm. Max cutting width 300mm;

● Machine with automatic feeding system;

● Machine is equipped with safety protection device.

● Suitable cutting material of PCB :aluminum ,FR4,glass fiber.

● Equipped with SMEMA connector ,easy to connect with upstream machine

● The machine adopts the touch screen and PLC which can monitor production information.

● MDS-900 is equipped with multiple sets of blades which can separate the whole light

bar board one time.

● The distance between upper and lower cutter can be precisely adjusted, the separating

thickness of PCB range is : 0.8MM-3.0MM.

YSVJ-650- Specifications
Model	YSVJ-650
Total Dimension	L2600W850H1050mm
Inlet conveying length	850mm
Outlet conveying length	850mm
Separating blades number	20 groups of upper and lower blades , total:40pcs
Max length of PCB	unlimited
PCB Thickness	0.6-5.0mm
Separating PCB bar number at one time	11 LINES
Separting width of single PCB	8-20MM
Max PCB width	280 mm
Max component height	30 mm
Blade material	SKD11
Blade average lifespan	1,000,000 times (1.2m long , 3mm thick PCB)
Voltage	220V/50Hz or 110V
Machine weight	210 kg
Power	200W
