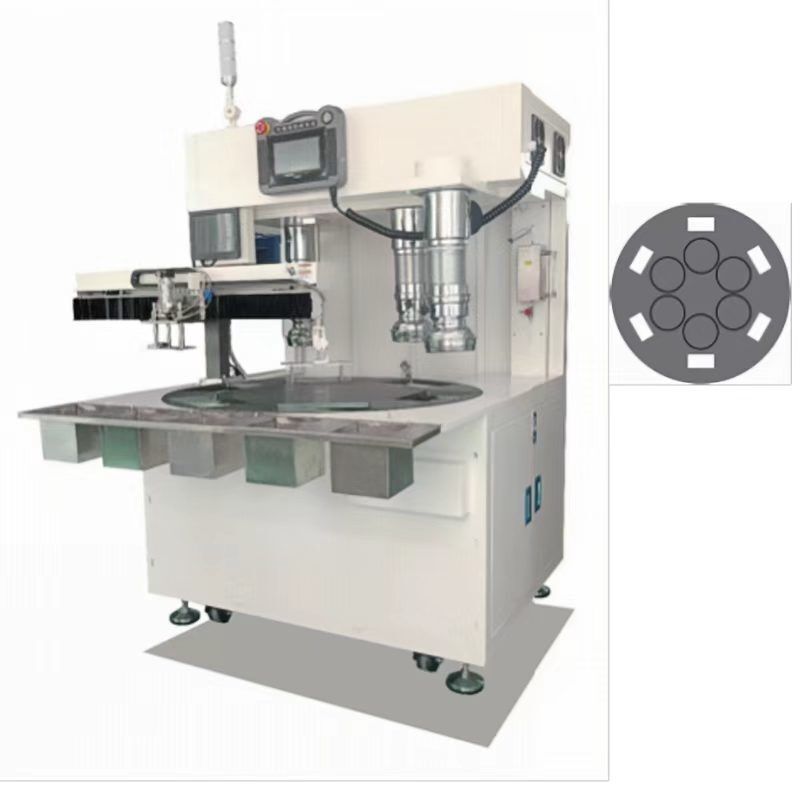

Rotary Table Selective Wave Soldering Machine with Precision Soldering
Advanced rotary table selective wave soldering system designed for precision soldering applications with high accuracy and reliability.
Technical Specifications
| Specification |
Details |
| Machine Model |
YSL-1006 |
| Overall Dimensions |
1130L × 1250W × 1700H (mm) |
| PCB Size Range |
Min: 30(L) × 30(W) mm
Max: 240(L) × 140(W) mm |
| Machine Appearance |
Closed-type |
| Preheating Method |
Bottom infrared preheating |
| Operating Height |
780 ± 20mm |
| Weight |
Approximately 500KG |
| Disk Size |
Diameter 950mm |
| Power Supply |
1Φ 220V 50/60HZ |
| Total Power |
3KW |
| Temperature Control Mode |
PID + SSR |
| Temperature Setting Range |
Maximum 350°C |
| Temperature Accuracy |
±2°C |
| Wave Height |
Maximum 0-8mm |
| Soldering Accuracy |
±0.05mm |
| Motion Axis |
XYZ |
| Motion Control |
Stepper motor |
| N₂ Consumption |
1.5-2m³/h (Nitrogen concentration > 99.999%) |
Company Profile
YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, China's world manufacturing hub. We specialize in professional PCB separator and PCB depanelizer electronic equipment machinery.
The company maintains advanced production and processing equipment with an experienced development and manufacturing team. Over half of our team members possess more than 10 years of experience in the electronic equipment industry.
Since 2004, our leadership has focused on developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, safety, and innovation, resulting in high-quality, stable-performance, and cost-effective products that improve production yields and enhance customer competitiveness.
Our product range includes various PCB separation types with manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router options. Due to our commitment to quality and competitive pricing, we serve customers worldwide and have become one of China's largest PCB separator production bases.
