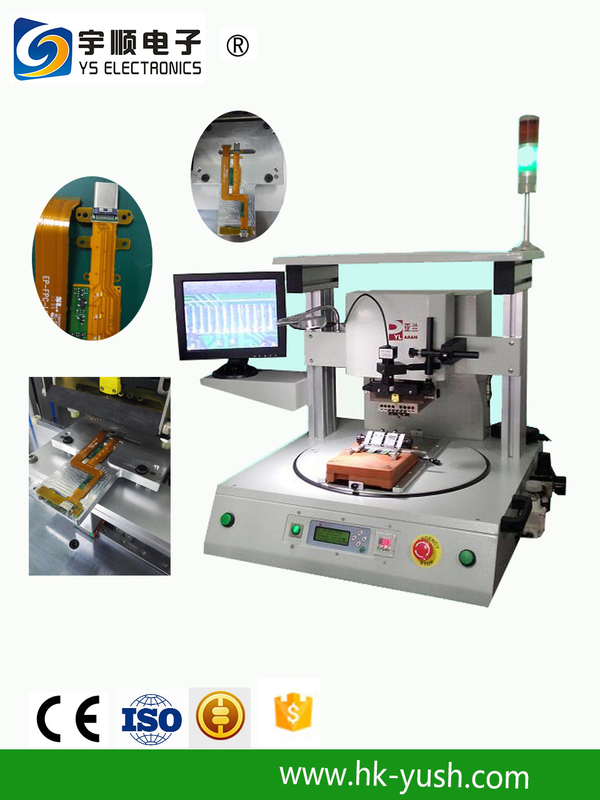

Advanced Tech Pulse Heat Hot Bar Soldering Machine With Flexible Fixture YSPP-1S
Specification:
Data lines Link welding machine
1. Accurate Tin press,not drag
2. Accurate heat
3. Fine-pitch positioning
4. Precision
Technology parameters
| Model | YSPP-1S |
| Max. Working Area | 200mm X 260mm |
| Fixture | 1 set |
| working air pressure | 0.45-0.7Mpa |
| Temperature setting | 20-500°C |
| Temperature precision | ±2°C |
| hot-pressing time | 1-99 s |
| force head pressure | 0.1-0.6 MPa |
| voltage | 110V/220V |
| Size | 620mm X 690mm X 570mm |
| Weight | 90Kg |
| momentary welding Power | 2000W |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. Electronic component won't short circuit
Feature:
1. Closed Loop PID temperature control with visible LED display
2. LCD display programmable pressure switch for precise force control
3. Each heating cycle is triggered by a real time pressure sensor
4. Floating thermode ensures consistent pressure and heat transfer
between the thermode head and the parts to be joined
5. Silicon rubber can be fitted in bonding Heat Seal Connectors
between LCD and PCB
6. Standard workpiece holder is mounted on a linear guideway and
designed to allow for easy changeover and repeatable operation
7. Parts registration is adjusted by micrometer and secured by vacuum
lock
8. Optional CCD system for fine pitch component
Our Advantage :
1. Engineer overseas tranning for customers
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying.
