Function:

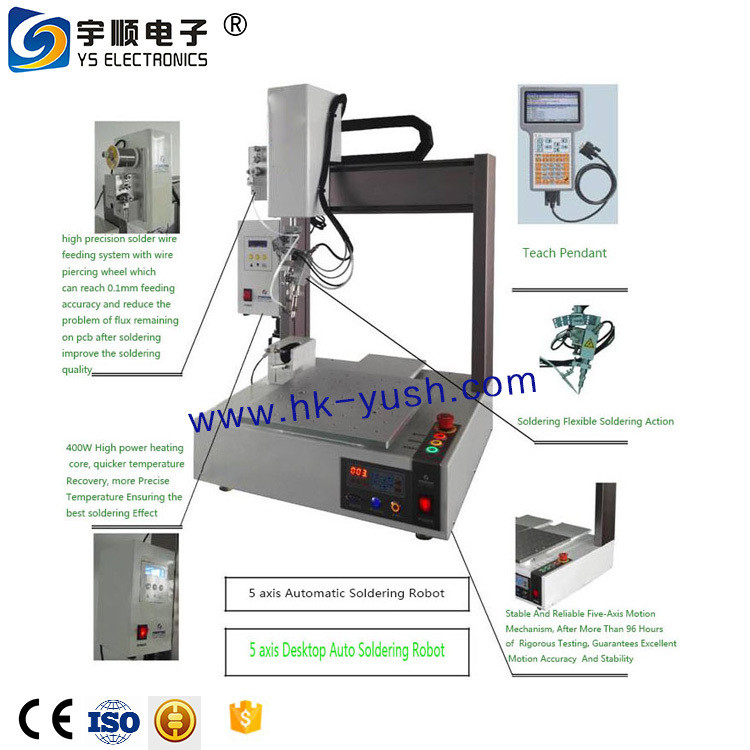

1. Touch screen + wireless remote control teach pendant operation
2. The controller adopts man-machine interaction, good data processing capability, powerful network communication functions, and IPC that can execute relatively complicated control algorithms and its near-unlimited storage capacity.
3..Unique fast and high precision temperature control technology based on power compensation, soldering power 400w (optional)
4. Machines can connect to soldering machine inspection cloud-based, like fault pre-warning, and diagnostics intelligent after-sales service cloud platform
5. Machine with blow-type tip cleaning box
6. The fourth generation welding head with precision cylinder and rail buffer and angle adjustment structure
7. The base of the machine is made of sheet metal and CNC machined to ensure the precision and consistency of the parts. It also ensures the stability of the machine operation.
8. The tin-broken system equipped on the machine itself can prevent the tin slag from exploding when the machine is in operation.
9. The X, Y and Z axes of the fuselage adopt double guide structure to improve the stability of the machine operation
10. Digitize the program, modify the parameters directly, change the same tin spot once, insert and delete one click
11. Unlimited procedural recording capabilities
12. Optional pneumatic soldering capability
13. With anti-collision function, it can reduce the damage rate of accidental collision of the machine
14. Multi-user authority management mode to prevent operators from changing parameters by mistake
15. The width of the assembly line is freely adjustable, suitable for most of product soldering.
16. The system display language is Chinese, English and Japanese
17. 400W high-frequency eddy current silver wire heating wire heater
| Product Description: | | | |
|
| | | | |
|
| Product name | | | YS-H7954B |
|
| Heating | | | 400W |
|
| Temperature Range | | | 180~450℃ |
|
| Qty of irons | | | 1 |
|
| Qty of Work platform | | | 2 |
|
| Qty of axis | | | 6 Qty |
|
| Drive system | | | Imported stepper motor imported timing belt |
|
| | | X-axis | 460 mm |
|
| Work Range | | Y-axis | 300 mm |
|
| | Z-axis | 100 mm |
|
| | |
|
| | | R-axis | 360˚ |
|
| | | X-axis | 800mm/Second |
|
| | | Y1-axis | 800mm/Second |
|
| Max speed *1 | | Y2-axis | 800mm/Second |
|
| | | Z-axis | 500mm/Second |
|
| | | R-axis | 360˚/Second |
|
| Max weight *2 | | | 20 kg |
|
| | | X-axis | ±0.01mm |
|
| Repeatability Precision | *3 | Y-axis | ±0.01mm |
|
| Z-axis | ±0.01mm |
|
| | |
|
| | | R-axis | ±0.01° |
|
| Teaching format | | | 480 X 272 pixels, 16 million color true color 5 inch LCD |
|
| | | Display handheld programmer |
|
| | | |
|
| | | |
|
| Max Height | | 100 mm |
|
| Qty of programs | | | 1000 |
|
| Qty of Soldering point | | | 4000 |
|
| Control System | | | ARM+DSP |
|
| Addition Function | | | 3 -5 |
|
| Peripheral Interface | | | RS232、USB |
|
| Input / Output | | | 12 |
|
| Total Power | | | 500W |
|
| Power source | | | AC 220V 50Hz |
|
| Air Supply | | | 0.3-0.8MPa， |
|
| Working environment | | | 0~40℃、Humidity 20~90% |
|
| Outside dimension | | | 754mm（X）×515mm（Y）×808mm（Z） |
|
| Weight | | | 67 kg |
|
