Features:
1.Used for cleaning solder paste, glue,etc
2. Stainless steel cabinet with good reliability and can resisit any hurt by acid and alkali cleaning chemistry.
3. Completely pneumatic operating without fire risk.
4. Cleaning in closed-loop which make lowest cleaning solvent consumption
5. Equipped with high precision tri-filtering system
6. Special design on air exhaust can reduce cleaning chemistry consumption
7. Good adaptability for compressor air(only 0.45Mpa could run )
8. Cleaning and drying process can be easily control with one-button operation

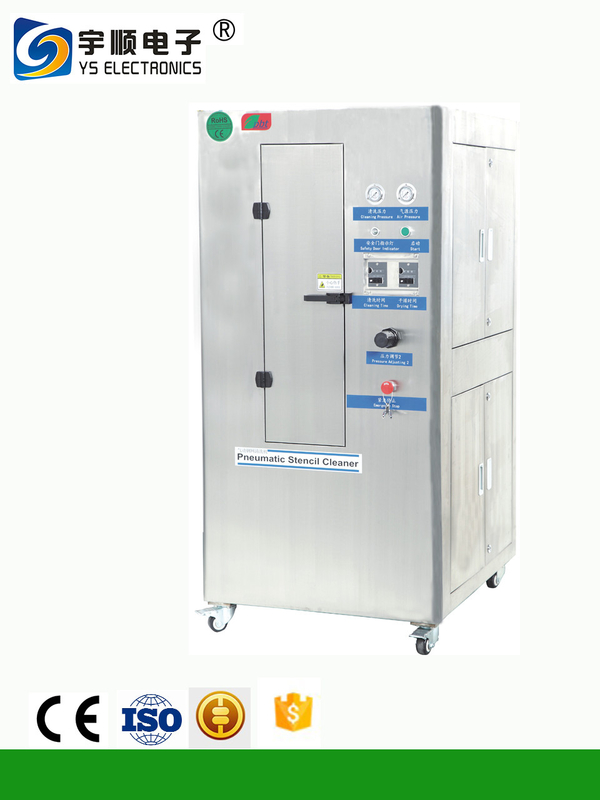

Specification:Pneumatic Stencil Cleaning System 304 Stainless steel SMT Stencil cleaning machine
| Application | stencil,glue screen ,copper screen |
| Application stencil size | Standard 29 inch and below |
| Clean liquid capacity | Max 50L ,Min 20 L |
| Cleaning fluid volume | 40L |
| Cleaning mothed | Rotary double side pressure injection and high pressure air praying ( cleaning and drying ) |
| Clean time | 2~4 min(stencil and copper net) |
| Rinse time | 2~4 min(stencil and copper net ) |
| Dry time | 2~5 min |
| External air supply | 0.4Mpa~0.6Mpa |
| Air consumption | 400~600L/Min*2 |
| Air outlet size | Φ125*25mm |
| Weight | 320Kg |
| Dimension | 980mm(L)*700mm(W)*1730mm(H) |
| Tin filter mothed | Three class filter(10μm,5μm,1μm) |
Cleaning Application
Apply to cleaning stencil ,copper screen,Micro screen and Crystal disk
