Fully Automatic Intelligent Nozzle Cleaning Machine
A multi in one automated cleaning and detection device with data tracing function

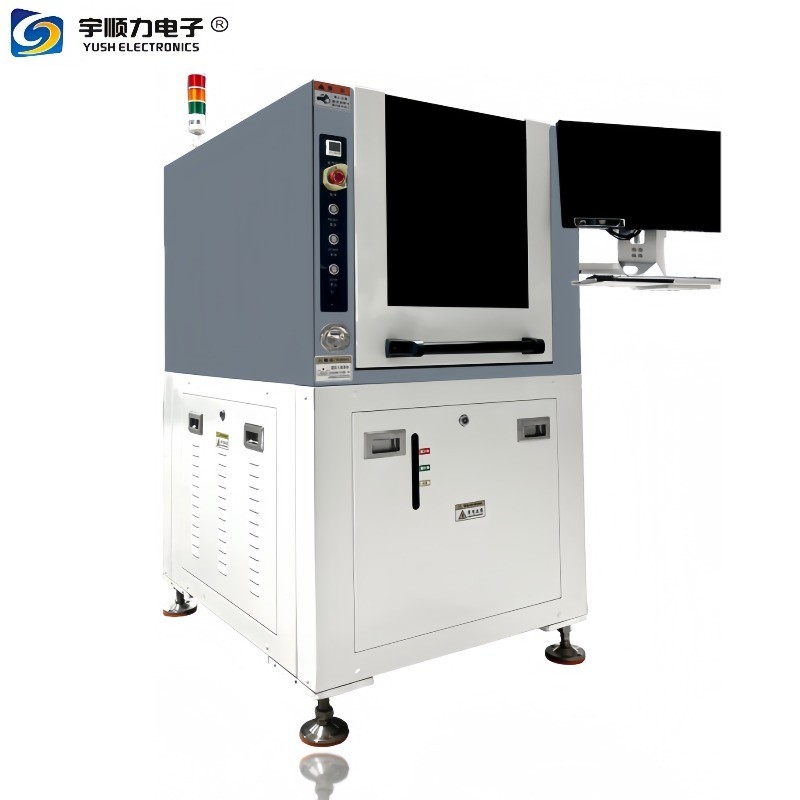

YSL Nozzle cleaning machine YSLS-F3
YUSH Nozzle cleaning machine YSLS-F3，A multi in one automated cleaning and detection equipment that automatically cleans, detects, and determines the NG/OK of the nozzle, and has data tracing function.
YUSH The functions and advantages of nozzle cleaning machines - Almost zero manual operation by personnel
- More nozzle cleaning quantities
- Fully automated suction nozzle grabbing, cleaning, and detection
- Standardized nozzle inspection to prevent defective nozzles from entering the production process
Fully Automatic Intelligent Nozzle Cleaning Machine - Inspection Items
Equipment dimension diagram display
Introduction to Equipment Parameters
| Item | Content | Detailed |
| Corresponding model | FUJI Brand suction nozzle | NXT series |
| Equipment Size | L*W*H（mm） | 990mm*785*1850mm |
| Equipment Weight | Curb weight | 450KG |
| Corresponding nozzle placement table | H08,H12,H24 | Place the suction nozzle in its original position on the machine |
| Corresponding suction nozzle carrier | Cleaning bracket | H08,H12 standard suction nozzle H24standard suction nozzle |
| Installation quantity of suction nozzle placement table | The maximum number of installations for the nozzle placement table | Model：YSLS-F3 Installation quantity: 3 suction nozzle placement tables (different types cannot be used) |
| Cleaning method | Circulating water cleaning | High pressure water spray |
| Cleaning solution | Capacity | Industrial distilled water:10L |
| Image processing examination | Camera recognition | Template matching + end face measurement |
| Sliding test | Pressure identification | Sliding testing of ultra-low range pressure sensors |
| Blocking detection | Traffic recognition | High precision detection of imported flow sensors from Japan |
| Cleaning time | Adjustable cleaning cycle time | 2D code detection, grab nozzle, high-pressure cleaning, high-pressure drying, flow detection, sliding detection, front-end detection, and return nozzle, with a maximum cycle of 15 seconds per piece |
| Adjustable cleaning frequency | |
| Server | Industrial grade industrial computer | Comes with Windows 10 Professional Edition |
| Operating system | Independent research and development | Soft control system |
| External interface | Network interface | Support MES online |
| Gas source | Supply air pressure | 0.4~0.7MPa |
| Source | Power supply | 220V single |
