Highlight:
                                    visual positioning printing press, high-definition multi-color printer, automatic inkjet printing machine

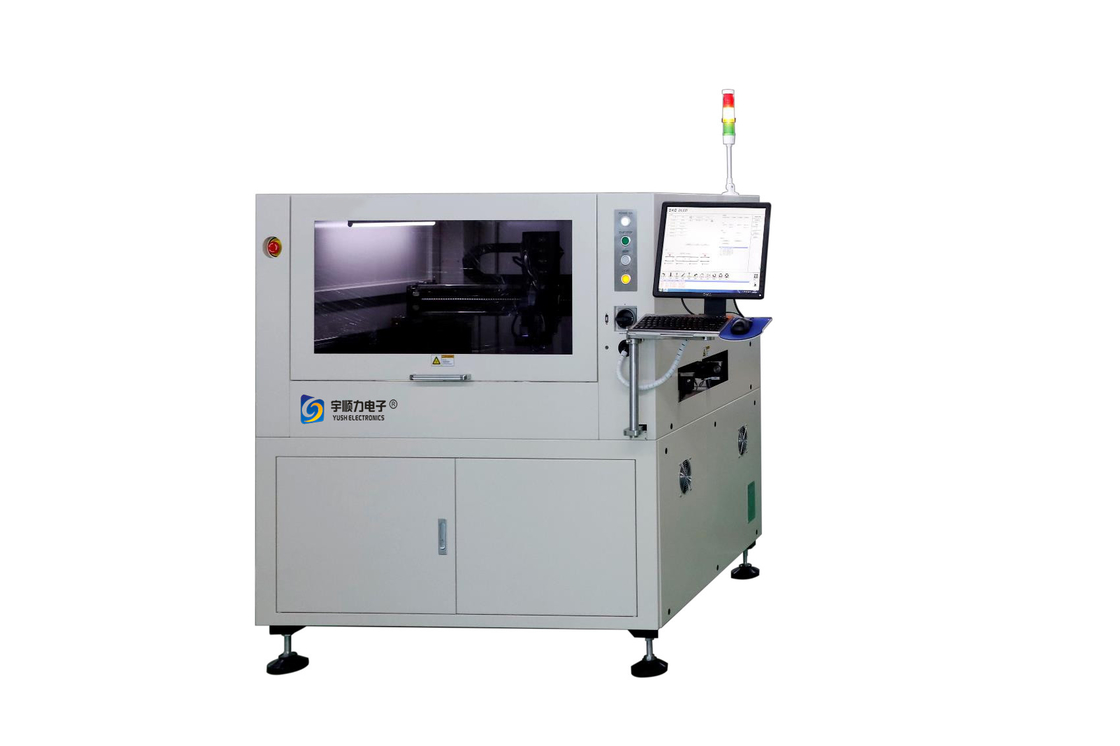

Visual positioning printing press Machine

Device model:YSL-LED

Visual positioning printing press Machine 0

Equipment performance parameters

Model	YSL-LED
PCB Max Size	890X510mm (Two-stage support 1200-1500mm)
PCB Min Size	50X60mm
PCB Thickness	1~6mm
Transport Height	900 ± 40mm
Transport Direction	L-R / R-L
Product weight	≤5KG
Conveyor Edge Distance	≥9mm
Bottom Of Compinent Height	≤10mm
Lifter Methhod	Side Lifter
Conveyor Stage	Two-section transport rail
I/O lnterface	SMEMA
Cleaning System	Vacuum cleaning Glue
CCD FOV	13x10mm
visual system	CCD Vision Positioning System
Machine Specifications
Position Accuracy	±50μm@3sigma
Repeat Position Accuracy	±25μm@3sigma
Operating system	Windows 7
Air supply	4~6 Kgf/cm2
Power supply	AC:220±10%, 50/60HZ ,1.5KW
Control Method	PC Control
Machine Dimensions	1600(L) x 1258(W) x 1490(H)mm
Machine Weight	Approx: 1000Kg

Functional configuration

The standard configuration	Air pressure stabilization device	option configuration	Microbalance
	Vacuum cleaning device		wipe system
	Low hydraulic level detection		Scan the code online
	XYZ axis calibration platform		Dual valve synchronization
	head heating		MES system
	Pneumatic valve		Piezo valve

Dimensions and Appearance

Visual positioning printing press Machine 1

Testing report

Test items	Repeat accuracy X	Repeat accuracy Y	Positioning accuracy X	Positioning accuracy Y
Specification	―25μm~25μm		―50μm~50μm
standard	3.335	3.593	2.692	1.995
CPK measured value	passed	passed	passed	passed

Visual positioning printing press Machine 2

Repeatability
Test method: The machine simulates production by itself, generates CPK data, CPK test software reads and analyzes the results, and generates graphics
Test speed: CCD X: 800mm/s
CCD Y: 800mm/s
Image acquisition delay: 110ms
Transport speed: 20mm/s
Test environment: machine level
Temperature: 24℃
Humidity: 60%

Visual positioning printing press Machine 3

Application field

Visual positioning printing press Machine 4

Visual positioning printing press Machine 5
