This Optical Lens Placement Machine is used for both smd components and Optical Lens Placement on pcb(printed circuit board), for Mainly for led Outdoor lighting(led Lens

or High Power bulk leds) and Led TV backboard smdprocess .Leadsmt experiences of this machines is well-skilled , not only sold in China but also delivered to Surkey,Poland and Russia Federation with reputed feedback .Year of Optical Lens placement Machine Launch.

Technical Specifications

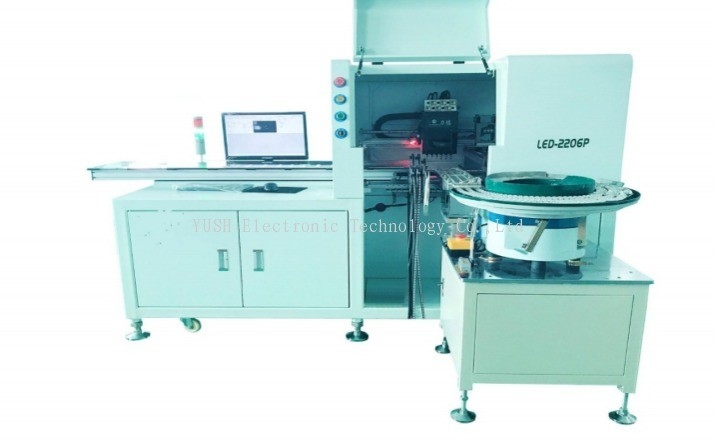

	Machine Model	YS-LED-2206P(6 Nozzle Heads Placement Machine)
	Nozzle Heads Structure	Excellent Spline structure with Crash Avoidance System
	Type of Nozzles for Led Lens	Specially design and Made according to the sample of Led Lens
	No.of Led Lens Lane	3 Lanes for Led Lens feeding
	Led Lens Feeding System	Grind & glaze surface vibration tray,3 trays for 3 lanes
	Practical Speed	Approx 32000cph for smd leds, 11000cph for led lens
	MAX Speed	40000CPH
	Placement Accuracy	0.001mm (equipped with visual alignment Cameras for each nozzle)
	Mounting Angle	0-360°
	Max PCB Board Size	1220MM * 380MM
	MAX Moving Range X,Y	X Axis 1220mm,Y 530mm
	Max Moving Range Z	15mm
	Position Method	Camera Position
	Components Available types	0402-1210 Specifications,Including IC ,smd Leds,smt connectors,resistors,led lens or bulk high power led ,Max range 20mm*20mm, Max Height 11mm
	Programming type	Computer imaging +camera position
	Feeder Model Available	8mm,12mm,16mm,24mm and 32mm Yamaha type feeders
	No.of feeders Position	12 PCS
	Feeder Type	Original Pneumatic Feeders (electric Feeders Optional)
