Name: Semi Automatic SMT PCB Assembly Line with 1 Year Warranty
Brand: YUSH Electronic Technology Co.,Ltd
Price: 92000 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YUSH

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 92000

Packaging Details: WOODEN CASE

Delivery Time: 8

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 10

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                            semi automatic SMT assembly line, PCB assembly line with warranty, SMT production line 1 year warranty


Application:	SMT PCB Assembly Production Line	Warranty:	1 Year
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Power Supply:	380V

Application:	SMT PCB Assembly Production Line
Warranty:	1 Year
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Power Supply:	380V

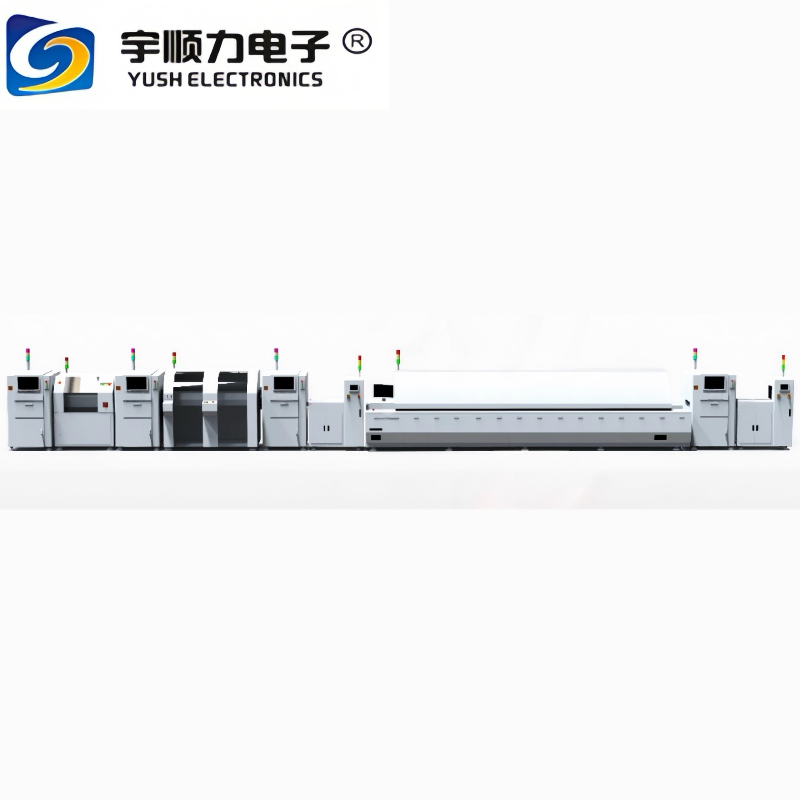

Semi Automatic SMT PCB Assembly Line with 1 Year Warranty

High Speed Production Machinery SMT Semi Automatic PCB Assembly Line

Product Specifications

Attribute	Value
Application	SMT PCB Assembly Production Line
Warranty	1 Year
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Power Supply	380V

SMT Production Line Components

SMT Stencil Printer (Semi-auto)

Model	Y3	Y6	Y12
Accuracy	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm
PCB Size	300 x 350 mm	600 x 350 mm	1200 x 350 mm
Platform size	300 x 350 mm	700 x 400 mm	1350 x 400 mm
Stencil Size(mm)	370470,550650	370470,550650	370470,550650,1500*650
PCB Thickness	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm
Stencil Positioning	Manual	Manual	Manual
Cycle Time	< 10 Sec.	< 10 Sec.	< 12 Sec.
Power Consumption	200 W	200 W	200 W
Power Supply	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ
Air Pressure	4.5-6 kg/cm	4.5-6 kg/cm	4.5-6 kg/cm
Squeegee Speed	0-1500mm/sec	0-1500mm/sec	0-1500mm/sec
Dimension	850x750x1650 mm	1050x750x1650 mm	1660x750x1650 mm
Weight	280 Kg	300 Kg	356 Kg
Squeegee Length	250mm	250mm	250mm
Platform Height	950mm	950mm	950mm

Option: Special size can be customized

Reflow Oven

Model	L8	L10
Dimension (LWH)mm	5000x1250x1490	5800x1250x1490
Weight	Approx. 1600KG	Approx. 1800KG
Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length Of Heating Zones	3121mm	3891mm
Rail Width Adjustment	M(option:A)	M(option:A)
Exhaust Volume	10M3/minx2 Exhausts	10M3/minx2 Exhausts
Control System	PLC+Computer	PLC+Computer
Temperature Control Method	PID + SSR	PID + SSR

SMT Factory Setup Services

We Provide Full SMT Solution for You
We Provide Core Technology With Our Equipments
We Provide The Most Professional Tech Service
We Have Wealthy Experience on SMT Factory Setup
We Can Solve Any Question About SMT

Keywords: SMT Line, SMT Prodution Line, SMT Assembly Line, SMT Stencil Printer, Solder Paste Printer, Pick and Place Machine, Chip Mounter, SMT Placement, Reflow Oven, SMT Reflow Soldering Oven, PCB Reflow Oven, SMT Loader, PCB Unloader, SMT Conveyor, Wave Soldering Machine, DIP Wave Soldering Equipment, Selective Wave Soldering Machine, PCBA Coating Machine, PCBA Insertion Machine, PCBA Router Machine.

YUSH Electronic Technology Co.,Ltd was founded in 2004, is located in the world manufacturing city Jiangsu, specializing in professional PCB separator/PCB depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.

Since 2004 the company has invested in developing and manufacturing the PCB separator and PCB depaneling machine. We focus on product quality, safety, and innovation, producing high quality, stable performance, cost-effective products that improve production yields and increase productivity. We offer various types of PCB separators including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router models. Our products are used worldwide, and YUSH has become one of the largest PCB separator production bases in China.
