Name: ESD PCB Loader YS-250 330x250mm 50pcs Capacity for SMT Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-250
Price: 3000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YUSH

Model Number: YS-250

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: USD3000

Packaging Details: woodencase

Delivery Time: 30days

Payment Terms: T/T,D/P,D/A,L/C

Supply Ability: 100SETS

Get Best Price

Product Details

Product Description

Highlight:
                                    ESD PCB Loader for SMT line, 330x250mm PCB Loader with 50pcs capacity, YS-250 ESD PCB Loader

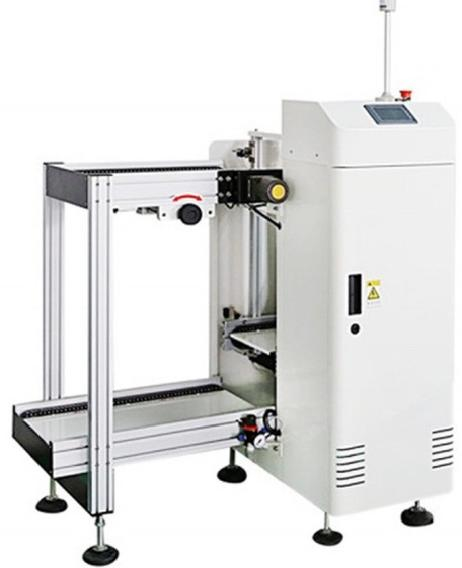

ESD PCB Loader YS-250 330x250mm 50pcs Capacity for SMT Line

High Speed / Online ESD PCB Loader YS-250 For SMT Production Line

ESD PCB Loader YS-250

A high-performance automated loading solution designed for SMT production lines, featuring precision components and programmable controls for efficient PCB handling.

Machine Size (L×W×H)	1100 × 780 × 1200 ±30mm
Guide Rails	Special aluminum alloy with rubber belt
Magazine Lifting Mechanism	Screw rod driven by 90W electric-brake motor (Made in Taiwan)
Transport Motor	15W stable speed motor (Made in Taiwan)
PCB Clamping	Pneumatic structure
Magazine Size (L×W×H)	355 × 320 × 565mm
PCB Size (L×W)	330 × 250mm
Direction	R-L / L-R
Adjustable Lifting Distance	10, 20, 30, and 40mm
Transport Height	920 ±30mm
Control System	Programmable Mitsubishi PLC with controller
Operation Interface	Touch Panel control
Pneumatic Components	Push plate cylinder with screw adjustment position
Power	220V 50HZ
Air Pressure	0.4-0.6MPa
Max PCB Storage Capacity	50 pieces

Key Features

Precision aluminum alloy guide rails with durable rubber belt
Taiwan-made motors for reliable magazine lifting and transport
Programmable Mitsubishi PLC for precise control
Intuitive touch panel operation interface
Pneumatic PCB clamping for secure handling
Adjustable lifting distance for flexible operation
Compact design with high storage capacity
