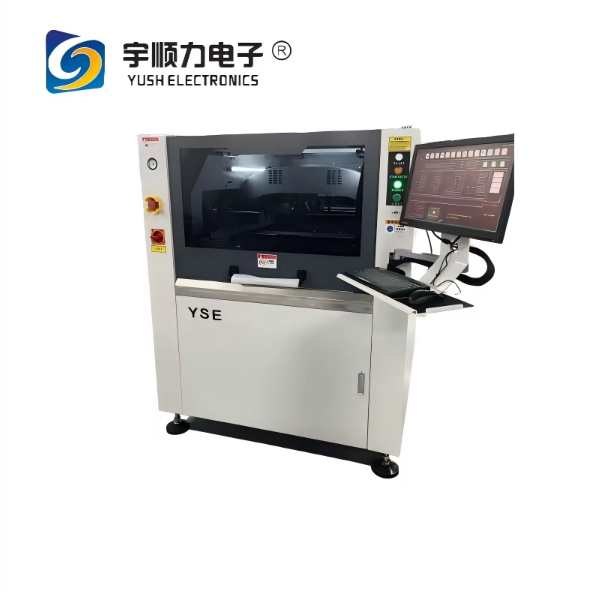

Smt Production Pcb Visual Test Line Online Aoi Inspection Machine
Product Features
- For SMT pre-reflow, post-reflow inline inspection
- High inspection rate and low false alarm rate
- Granite platform, greatly improve machine precision and stability
- Programmable RGB+W LED lighting source, Bilateral telecentric lens, low distortion and high depth of field
- Simplified programming flow, very simple interface. Support batch modifying parameters with one-key
- Centralized control. Interconnection between multiple equipment
- Multiple configurations meet different inspection demands
- Inspection ability: insufficient, short, soldering hole, solder covering pin, contamination, misalignment, missing part, skewed, billboard, mounting on side, overturn, wrong part, damaged, float, polarity, pseudo soldering, empty solder, excessive glue etc.
- Good stability (GR&R<10% @6 Sigma, CPK>1.33 (Test deviation accuracy less than ±0.25mm)
- PCB warpage compensation: total Mark compensation calibration, component position frame compensation
- Data is traceable. Support SPC alarm, LOG automatic collecting and storage function, NG warning/alarm function, Remote programming & debugging
Key Advantages
Deep Learning Algorithm
YS AOI by applying deep learning algorithm, big data optimization and intelligent minimalist programming in industrial inspection, YS enables intelligent judgment by one-click automatic identification of components and solder joints, thus addressing the two major pain points of traditional algorithms, namely, long programming time and high false alarm rate.
Quick Inspection Speed
- Adopt photographing inspection mode of top high precision intelligent camera. Flexibly deal with high capacity PCB.
- Adopt deep alignment control system and maintain ultrafast moving speed.
- Real-time computation. Shoot next FOV. Meanwhile compute last FOV solder joint.
- Path planning. Automatically plan path movement inspection.
MES System Data Report
- Data is retained in real time and can be exported, which is beneficial to process improvement and production tracing.
- Camera automatically reads code (bar code and QR code).
- Complete data, including overall statistic data and all inspection information of each board inspected.
- Support one-key export, which is convenient for traceback. Data can be effectively applied in MES system.
Technical Specifications
| Model |
YS SMT AOI AI-5146 |
YS SMT AOI AI-5146D |
| Mini Component |
01005chip, 0.3pitch IC and Special shaped |
| FOV |
15um@60*45mm, 10um@40*30mm |
15um@60*45mm |
| Resolution |
15um(Standard), 10um |
15um |
| Camera |
5M pixel intelligent digital industrial camera(12M Optional) |
| Lens |
Telecentric lens |
| Inspection Speed |
0.23sec/FOV |
| Rail |
Single rail |
Dual rail |
| PCB Height |
Top:25mm, Bottom:80mm |
Top:25mm, Bottom:30mm |
| PCB Thickness |
0.3 ~ 6.0mm |
| PCB Edge |
3.7mm |
| PCB Warpage |
±3.0mm |
| PCB Weight |
Max:3Kg |
| Conveyor Height |
900±20mm |
| With Adjustment |
Manual & Auto |
| Conveyor Direction |
L ~R or R ~L |
| Power |
AC220 50/60Hz, 5A |
| Rated power |
380W |
| Communication |
SMEMA |
| Weight |
750Kg |
790Kg |
