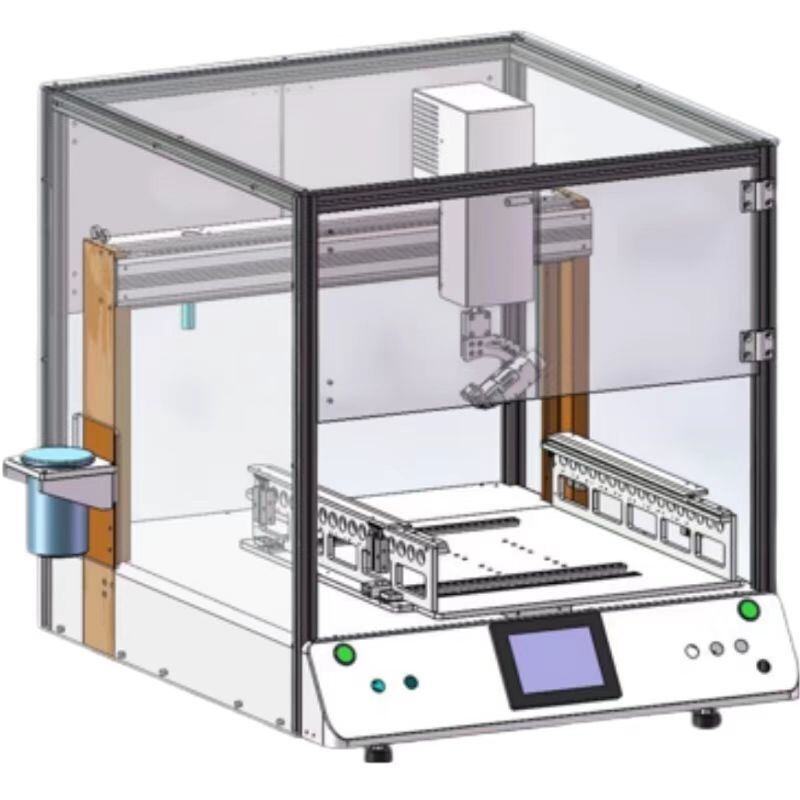

High Speed Fully Automatic PCB Lead Cutting Machine

Advanced component lead trimming solution for precision PCB manufacturing with automated operation and high-speed performance. This fully automatic system provides efficient component lead cutting for electronic production environments.

Technical Specifications

Valid Travel Range	X1/200/X2/200/Y1/300/Y2/300/Z1/100/R/360° (customizable)
Speed	100 points/minute
Repeat Accuracy	0.02-0.04mm (synchronous belt rotation)
Workload Capacity	X,Y load (10kg) Z load (5kg)
Dimensions	730mm × 900mm × 890mm
Weight	68kg
Frame Construction	Aviation aluminum alloy structure with brushed electrophoresis surface treatment
Drive System	Stepper motor + linear guide + timing belt
Motor Type	Stepper precision motor
Axis Speed (X/Y/Z)	0-600mm/sec
Power Supply	Full voltage AC110V-220V
Motor Control Axes	5-axis
Resolution	0.01mm/Axis
Programming Method	Teach programming or drag programming
Motion Control System	Five-axis motion control card, stable and efficient
Cutting Capacity	Copper 1.5mm, Iron 1.0mm, Steel 0.5mm (customizable)
Program Capacity	Point files ≤ 99, Points ≤ 999
Motion Tweening	3-axis
I/O Output	8 in 16 out
Storage Expansion	Supports flash memory

Application Scope

Suitable for all types of consumer electronics PCBs and electronic component manufacturing applications.

Key Features & Benefits

High Versatility: Compatible with PCB components or wires, with independent height control for single points or overall cutting operations
Enhanced Flexibility: Universal fixtures for quick interchange and direct program calling via handle interface
Precision Performance: Defect rate ≤0.02% for standard products with tolerance under 0.2mm
Compact Design: Space-efficient footprint for easy integration into production lines
Dual Platform Operation: One-in-one-out platform configuration minimizes downtime and doubles cutting efficiency
Safety Options: Available protective measures including safety light curtains with auto-start protection
Touch Screen Interface: Modern control system with optional safety grating protection

This high-speed automated PCB lead cutting machine delivers precision performance with advanced safety features, making it ideal for modern electronic manufacturing environments.
