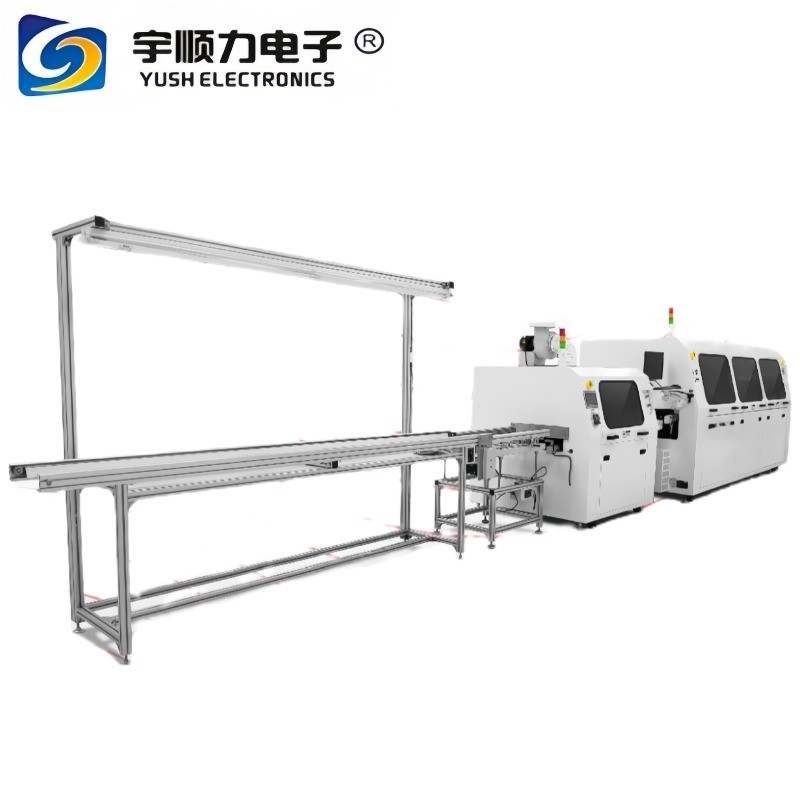

Automatic DIP Insertion Line for PCBA Assembly Line

Introduce of DIP Insertion Line

1. Size :(L)3000*(W)600*(H) 1950±20mm.
2. Drive System :Taiwan motor(2HP)and 80# Retarder, inverter made by adlaspower,speed range 0-5m/min(only for automatic line).
3. Main body: 40*40mm aluminium product;rail by 40*60mm aluminium;lantern support by 40*40mm aluminium,Frame made by 40x 40 aluminium product.
4. Lighting System: 40w lighting,lamp by FSL, Wire is 1.5², Subsection control.
5. Power: The lower line socket, both sides separate control, wire using 4 square wire, each with 2 meters, about 1 each, trough made of galvanized plate production, the size is 60 * 80 * 1 mm.
6. Accessory: operation card made by 25*14“H" aluminium product,with A4 transparent hard plastic.

Configuration:
Motor: 2HP,made by AIDELI (for auto line)
Inverter: 2HP,made by AIDELI
Main body: 40*40mm, aluminium
Operation Card: 25*14“H" aluminium
Lighting: 40w FSL lamp
Rail: 40*60mm,aluminium

Specification:
Dimension(mm): 3000*600*1950mm/set
PCB Width: 50 – 350mm(adjustable)
PCB Thickness: 0.6 – 6.0mm
Transport Height: 750±20mm
Control Mode: Manual or Motor Power Max 50 VA
Air Supply: 4-6bar PCB Direction L to R or R to L
Power Supply: 1 PH AC 220V 50/60Hz (Option:110V to 380V)
Weight: 260Kg/ set
