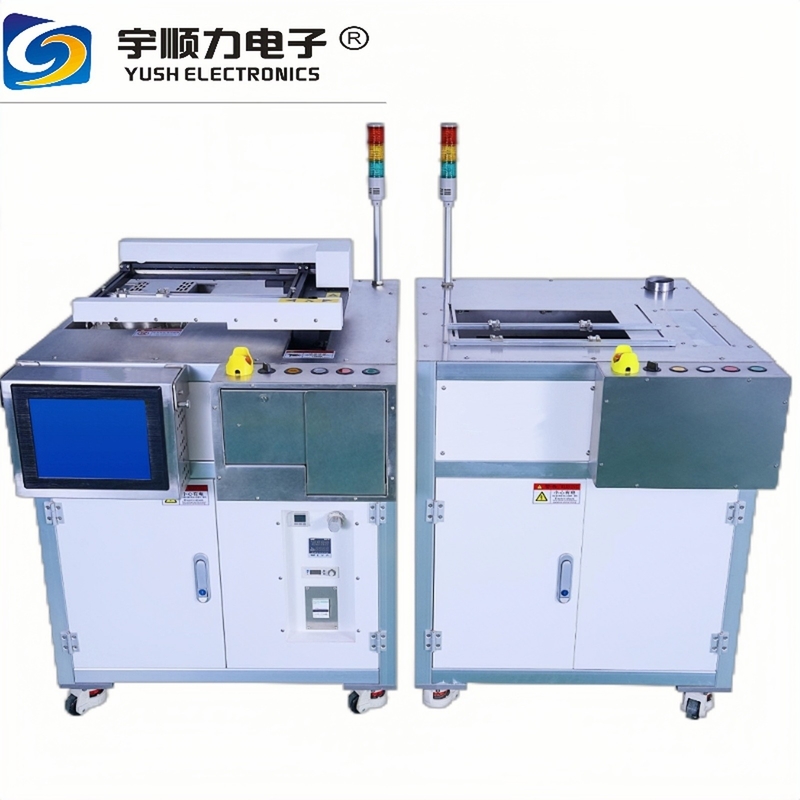

Split Selective Wave Soldering Machine YS-320S for SMT PCB 320x250mm

Product Details

Place of Origin: China

Brand Name: YUSH

Model Number: YS=320S

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: USD25000

Packaging Details: woodencase

Delivery Time: 30days

Payment Terms: D/P,D/A,L/C,T/T

Supply Ability: 100SETS

Get Best Price
Highlight:

Split selective wave soldering machine

,

SMT PCB soldering machine 320x250mm

,

Selective wave soldering machine with warranty

Applicable PCB Board Size:
L*W : 50×50~320×250 Mm
Weight:
100KG (Containing Solder12KG)
Applicable PCB Board Thickness:
Substrate Thickness:0.8~3 Mm / Pin Length:Within 3mm
Applicable PCB Board Size:
L*W : 50×50~320×250 Mm
Weight:
100KG (Containing Solder12KG)
Applicable PCB Board Thickness:
Substrate Thickness:0.8~3 Mm / Pin Length:Within 3mm
Split Selective Wave Soldering Machine YS-320S for SMT PCB 320x250mm
High Efficiency Split Selective Wave Soldering Machine YS-320S For SMT Production Line
Product Specifications
Attribute Value
Applicable PCB board size L*W: 50×50~320×250 mm
Weight 100KG (Containing solder 12KG)
Applicable PCB board thickness Substrate thickness: 0.8~3 mm / Pin length: Within 3mm
Key Features
  • High efficiency split selective wave soldering for SMT production lines
  • Precise control with PC+PLC system (Windows+Siemens)
  • Customizable nozzle inner diameter (φ3mm~φ20mm)
  • Automatic alignment and height measurement
  • Offline image production programming support
Technical Specifications
Specification Detail
Component height On substrate: Less than 100mm / Below substrate: Less than 30mm
Substrate conditions Edge process ≥3mm, weight ≤5kg, bending ≤0.5mm
Tin furnace All-titanium alloy material, 12KG capacity, 2KW power
Preheating power Infrared preheating 1KW
Total power AC 220V 3.5KW
N2 Requirements 99.999% purity, 0.5MPa pressure, 1.2 cubic meters consumption
Dimensions 750×820×1350 mm (excluding three-color lights)
Program Programming

Intuitive programming by importing PCB board pictures. Supports offline programming on office computers with quick integration into production.

YS-320S Wave Soldering Machine programming interface
Key Components
Component Brand Specifications
Tin furnace Titanium alloy
PLC Huichuan
Temperature control Yamabu, Japan
Pneumatic component SMC of Japan and Aideke of Taiwan
Wave Peak Motor Custom high-temperature motor Operates at constant 200°C temperature
YS-320S Wave Soldering Machine components diagram
