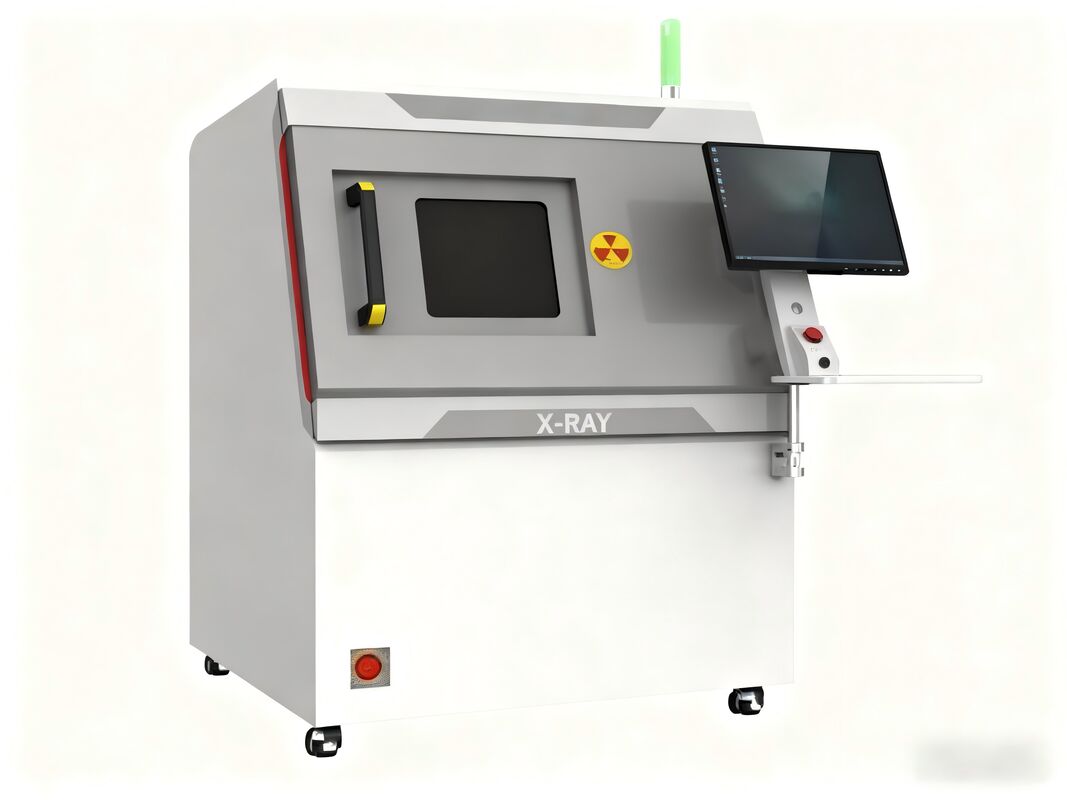

High Quality and High Efficiency Microfocus X-RAY Inspection System
High Quality and High Efficiency Microfocus X-RAY Inspection System

High Quality and High Efficiency Microfocus X-RAY Inspection System

Product Details

Place of Origin: GUANGDONG

Brand Name: YUSH

Model Number: YS-X6600

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD43000

Delivery Time: 20work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000

Get Best Price

Product Details

Product Description
Highlight:

Microfocus X-ray inspection system

,

Automatic X-ray inspection equipment

,

High efficiency X-ray system

Tube Voltage:
40-90kV
Tube Current:
10-200uA (software Limited To 89uA )
Imaging Area:
130mm*130mm
Repeated Test Accuracy:
3μm
Tube Voltage:
40-90kV
Tube Current:
10-200uA (software Limited To 89uA )
Imaging Area:
130mm*130mm
Repeated Test Accuracy:
3μm
High Quality and High Efficiency Microfocus X-RAY Inspection System
High Quality and High Efficiency Microfocus X-RAY Inspection System
Function

X-ray tube and detector can move along Z direction. Speed of table moving along X-Y direction can be adjusted.

  • High-definition digital flat panel detector
  • Max Inclined Angle is 60°, samples can be observed with a unique perspective
  • Fault less than 2.5μm can be detected
  • High detection repeat accuracy
  • Powerful CNC Measuring Function, can test automatically, testing program can be edited
  • Large inspection space, can put various large-sized samples
  • The table can carry 10KG items
  • Large navigation view, table will move to where you click the mouse
High Quality and High Efficiency Microfocus X-RAY Inspection System 0
Advantages
  • Larger effective detection range, improving the magnification and the detection efficiency of the product
  • Easy to identify the side defects of the product and achieve no dead angle detection
  • Easy to distinguish the gold wire bending and break of the semiconductor package
  • Suitable for large-scale inspection and improve detection efficiency
  • Large table for large industrial control boards, ultra-long LED strips, and electronic products for various fields
  • Very easy to operate, quickly find item defects and improve detection efficiency
High Quality and High Efficiency Microfocus X-RAY Inspection System 1
Technical Specifications
Specification Value
Focal spot size 5-15μm
Inclined Angle 0-60°
Pixel matrix 1536*1536 pixels
Effective inspection area 500mm×420mm
Load capacity ≤5Kg
