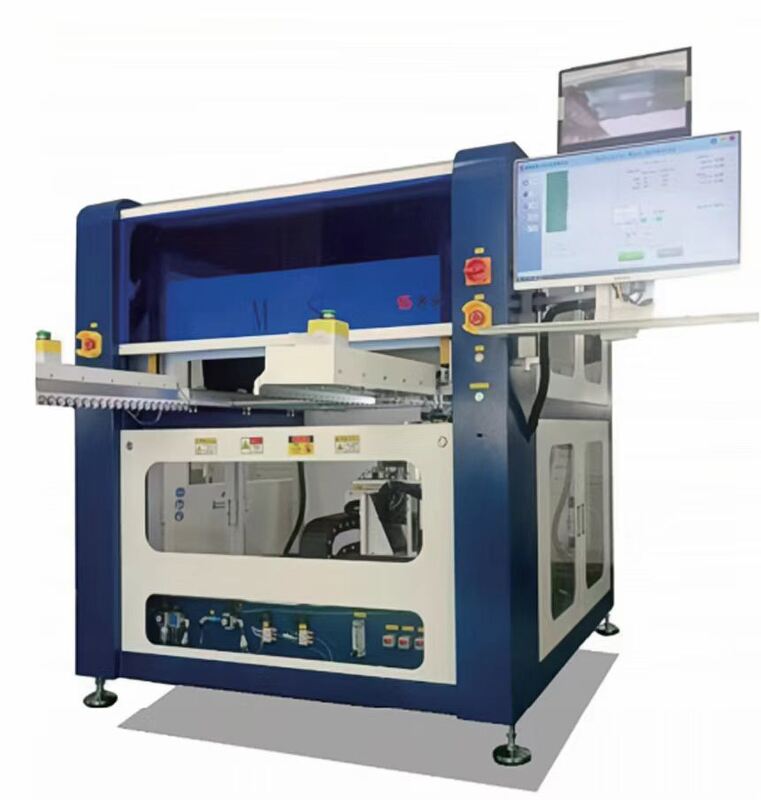

High Efficiency Heavy-Duty Selective Wave Soldering Machine for SMT Line
Technical Specifications
| Model | YSL-600 |
|---|
| Overall Dimensions | 2200L × 1500W × 1700H (mm) |
|---|
| PCB Size | Min: 30(L) × 30(W); Max: 600(L) × 600(W) (mm) |
|---|
| Machine Appearance | Closed-type |
|---|
| Preheating Method | TOP IR Preheating |
|---|
| Operating Height | 900±20mm |
|---|
| Weight | Approx. 900KG |
|---|
| Flux Capacity | 1L |
|---|
| Power Supply | 220V 50/60HZ |
|---|
| Total Power | 14KW |
|---|
| Temperature Control Mode | PID+SSR |
|---|
| Temperature Setting Range | Max 350°C |
|---|
| Temperature Accuracy | ±2°C |
|---|
| Waver Height | Max 0-8mm |
|---|
| Soldering Accuracy | ±0.05mm |
|---|
| Motion Axis | XYZ |
|---|
| Motion Control | Closed-loop Servo Control |
|---|
| N2 Consumption | 1.5-2m³/h (Nitrogen concentration ≥99.999%) |
|---|
System Process
Manufacturer Profile
YUSH Electronic Technology Co., Ltd., founded in 2004 and located in Jiangsu, China, specializes in professional PCB separator and depanelizer electronic equipment machinery. The company operates advanced production and processing equipment with an experienced development team, half of whom possess over 10 years of experience in the electronic equipment industry.
Since 2004, YUSH has focused on product quality, safety, and innovation, developing high-quality, stable-performance, cost-effective PCB separation solutions. Our product range includes manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types of PCB separators and depaneling machines, serving customers worldwide and establishing YUSH as one of China's largest PCB separator production bases.
Quality Assurance
- Pre-production sampling before mass production
- Final inspection before shipment
Product Range
PCB depaneling, PCB separator, PCB cutting machine, PCB depaneler, V-cut machine
Global Distribution
Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), Mid East (5%)
Business Services
Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Options:
Accepted Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Language Support: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
