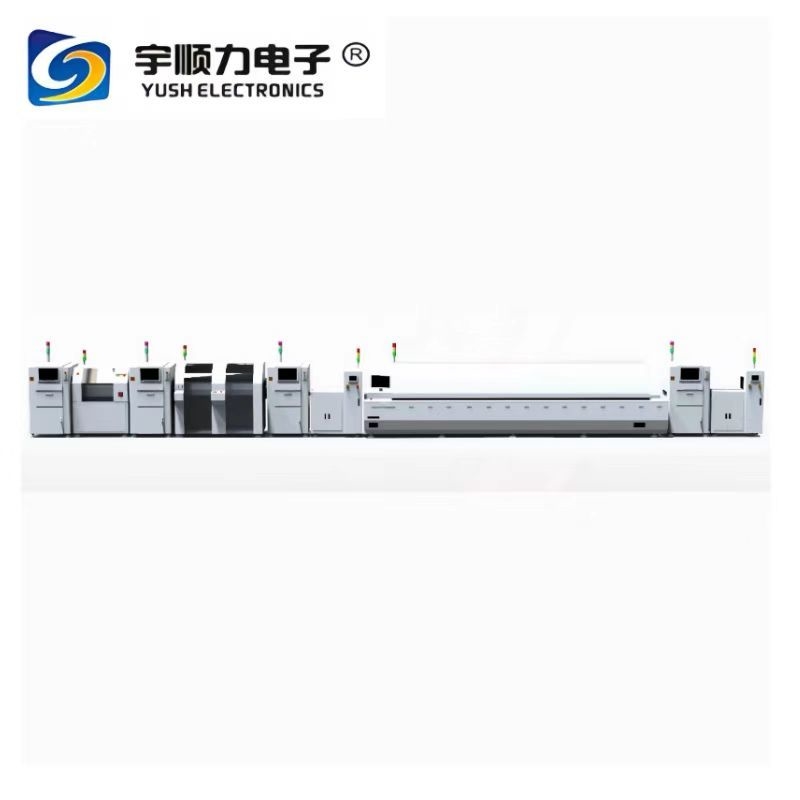

High Speed Semi Automatic SMT PCB Assembly Line
High Speed Production Machinery SMT Semi Automatic PCB Assembly Line
Product Specifications
| Attribute |
Value |
| Application |
SMT PCB Assembly Production Line |
| Warranty |
1 Year |
| Machinery Test Report |
Provided |
| Video Outgoing-Inspection |
Provided |
| Power Supply |
380V |
SMT Production Line Components
SMT Stencil Printer (Semi-auto)
| Model |
Y3 |
Y6 |
Y12 |
| Accuracy |
+/- 0.05mm |
+/- 0.05mm |
+/- 0.05mm |
| PCB Size |
300 x 350 mm |
600 x 350 mm |
1200 x 350 mm |
| Platform size |
300 x 350 mm |
700 x 400 mm |
1350 x 400 mm |
| Stencil Size(mm) |
370*470,550*650 |
370*470,550*650 |
370*470,550*650,1500*650 |
| PCB Thickness |
0.2 - 6 mm |
0.2 - 6 mm |
0.2 - 6 mm |
| Stencil Positioning |
Manual |
Manual |
Manual |
| Cycle Time |
< 10 Sec. |
< 10 Sec. |
< 12 Sec. |
| Power Consumption |
200 W |
200 W |
200 W |
| Power Supply |
1 -PH, 220VAC 50/60HZ |
1 -PH, 220VAC 50/60HZ |
1 -PH, 220VAC 50/60HZ |
| Air Pressure |
4.5-6 kg/cm |
4.5-6 kg/cm |
4.5-6 kg/cm |
| Squeegee Speed |
0-1500mm/sec |
0-1500mm/sec |
0-1500mm/sec |
| Dimension |
850x750x1650 mm |
1050x750x1650 mm |
1660x750x1650 mm |
| Weight |
280 Kg |
300 Kg |
356 Kg |
| Squeegee Length |
250mm |
250mm |
250mm |
| Platform Height |
950mm |
950mm |
950mm |
Option: Special size can be customized
Reflow Oven
| Model |
L8 |
L10 |
| Dimension (L*W*H)mm |
5000x1250x1490 |
5800x1250x1490 |
| Weight |
Approx. 1600KG |
Approx. 1800KG |
| Number Of Heating Zones |
Up8/Bottom8 |
Up10/Bottom10 |
| Length Of Heating Zones |
3121mm |
3891mm |
| Rail Width Adjustment |
M(option:A) |
M(option:A) |
| Exhaust Volume |
10M3/minx2 Exhausts |
10M3/minx2 Exhausts |
| Control System |
PLC+Computer |
PLC+Computer |
| Temperature Control Method |
PID + SSR |
PID + SSR |
SMT Factory Setup Services
- We Provide Full SMT Solution for You
- We Provide Core Technology With Our Equipments
- We Provide The Most Professional Tech Service
- We Have Wealthy Experience on SMT Factory Setup
- We Can Solve Any Question About SMT
Keywords: SMT Line, SMT Prodution Line, SMT Assembly Line, SMT Stencil Printer, Solder Paste Printer, Pick and Place Machine, Chip Mounter, SMT Placement, Reflow Oven, SMT Reflow Soldering Oven, PCB Reflow Oven, SMT Loader, PCB Unloader, SMT Conveyor, Wave Soldering Machine, DIP Wave Soldering Equipment, Selective Wave Soldering Machine, PCBA Coating Machine, PCBA Insertion Machine, PCBA Router Machine.
